L15-1002A 80W/100/140W/200W High Bay

L15-1002A 80W/100/140W/200W High Bay

More Views

SKU: L15-1002A

$299.00

Availability: In stock

*Watt:

* Required Fields

$299.00

Qty:

| Add to Compare

Description

Details

Lighting efficiency
155LM/W

CRI:73
Storag Temp: -40 ℃ ~ 80℃
Working Temp: -30℃ ~ 50℃

Input current

L15-1002A-80W:
90V 0.85±0.05A
230V 0.32±0.05A
277V 0.3±0.05A

L15-1002A-100W:
90V 1.2±0.05A
230V 0.45±0.05A
277V 0.4±0.05A

L15-1002A-140W:
90V 1.5±0.05A
230V 0.6±0.05A
277V 0.5±0.05A

L15-1002A-200W:
90V 2.3±0.05A
230V 0.8±0.05A
277V 0.7±0.05A

Power Factor

L15-1002A-80W:
90V 0.99
230V 0.96
277V 0.95

L15-1002A-100W:
90V 0.99
230V 0.96
277V 0.92

L15-1002A-140W:
90V 0.99
230V 0.97
277V 0.92

L15-1002A-200W:
90V 0.99
230V 0.97
277V 0.9

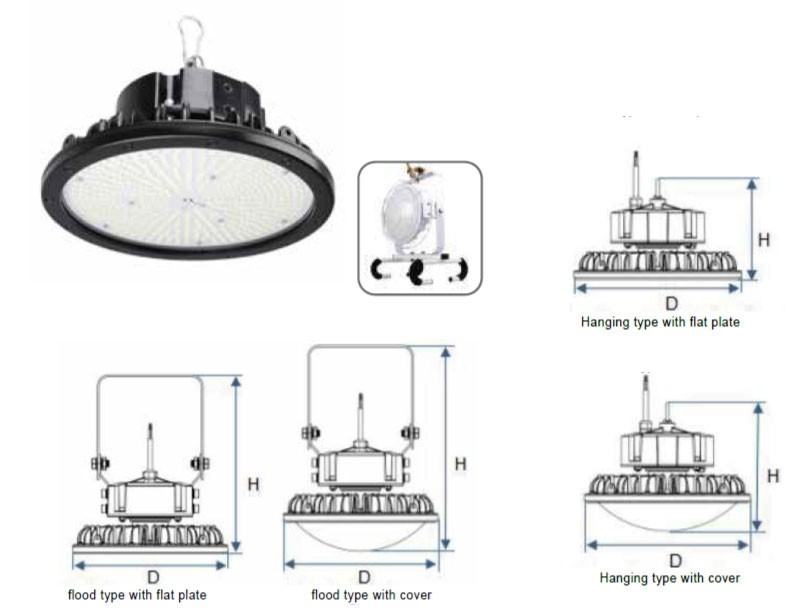

Size & Weight
Hanging type with flat plate
L15-1002A-80W: φ228*161mm & (3±0.1)KG
L15-1002A-100W:φ228*161mm & (3±0.1)KG
L15-1002A-140W:φ268*161mm & (3.7±0.1)KG
L15-1002A-200W:φ350*161mm & (4.5±0.1)KG

Hanging type With cover
L15-1002A-80W: φ228*208mm & (3±0.1)KG
L15-1002A-100W:φ228*208mm & (3±0.1)KG
L15-1002A-140W:φ268*208mm & (3.7±0.1)KG
L15-1002A-200W:φ350*208mm & (4.5±0.1)KG

Flood type with flat plate
L15-1002A-80W: φ228*282mm & (3±0.1)KG
L15-1002A-100W:φ228*282mm & (3.7±0.1)KG
L15-1002A-140W:φ268*282mm & (4.5±0.1)KG
L15-1002A-200W:φ350*282mm & (5.5±0.1)KG

Flood type With cover
L15-1002A-80W: φ228*328mm & (3±0.1)KG
L15-1002A-100W:φ228*328mm & (3.7±0.1)KG
L15-1002A-140W:φ268*328mm & (4.5±0.1)KG
L15-1002A-200W:φ350*328mm & (5.5±0.1)KG

Additional Information

Additional Information

IP Rating	IP65
Lumens	80W: 12400LM \| 100W: 15500LM \| 140W: 21700LM \| 200W: 31000LM
1m Intensity of Illumination	No
Beam Angle	110°,120°
Chip	SSC 2835 SMD chip
Lights Information	80W: 310pcs LED \| 100W: 445pcs \| 140W: 620pcs \| 200W: 775pcs
Style Details	AC LED high bay built-in driver
Working Mode	On \| Off
Power Type	AC
Battery	AC120-277V 50-60HZ
Battery Life
Battery Indicator
