L15-E39/E40 80W/100W/140W LED High Bay

L15-E39/E40 80W/100W/140W LED High Bay

More Views

SKU: L15-E39/E40

$269.00

Availability: In stock

*Watt:

*Socket Type

Socket type with flat plate
Socket type with cover

* Required Fields

$269.00

Qty:

| Add to Compare

Description

Details

Lighting efficiency
150LM/W

CRI
73

Storag Temp: -40 ℃ ~ 80℃
Working Temp: -30℃ ~ 50℃

Size & Weight

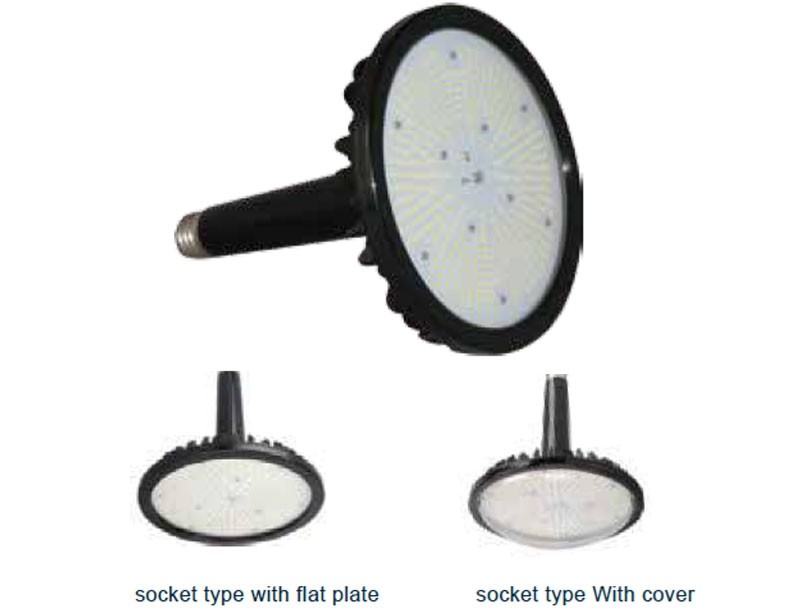

socket type With cover:
L15-E39/E40-80W: φ228*347mm & 1.6KG±0.1
L15-E39/E40-100W:φ228*347mm & 1.6KG±0.1
L15-E39/E40-140W:φ268*347mm & 1.6KG±0.1

socket type with flat plate:
L15-E39/E40-80W: φ228*300mm & 1.6KG±0.1
L15-E39/E40-100W:φ228*300mm & 1.6KG±0.1
L15-E39/E40-140W:φ268*300mm & 1.6KG±0.1

Built-in Driver design

Input current

L15-E39/E40-80W:
90V 0.85±0.05A
230V 0.32±0.05A
277V 0.3±0.05A

L15-E39/E40-100W:
90V 1.2±0.05A
230V 0.45±0.05A
277V 0.4±0.05A

L15-E39/E40-140W:
90V 1.5±0.05A
230V 0.6±0.05A
277V 0.5±0.05A

Power Factor

L15-E39/E40-80W:
90V 0.99
230V 0.96
277V 0.95

L15-E39/E40-100W:
90V 0.99
230V 0.96
277V 0.92

L15-E39/E40-140W:
90V 0.99
230V 0.97
277V 0.92

Additional Information

Additional Information

IP Rating	IP62
Lumens	80W: 12000LM \| 100W: 15000LM \| 140W: 21000LM
1m Intensity of Illumination
Beam Angle	110°, 120°
Chip	SSC 2835 SMD
Lights Information	80W: 280pc LED \| 100W: 420pc LED \| 140W 540pc LED
Style Details	AC LED high bay built-in driver
Working Mode	On \| Off
Power Type	AC
Battery	AC120-277V 50-60HZ
Battery Life
Battery Indicator
